Troubleshooting Guide

Common issues and professional solutions for your DIY projector

Correcting Mirrored Text

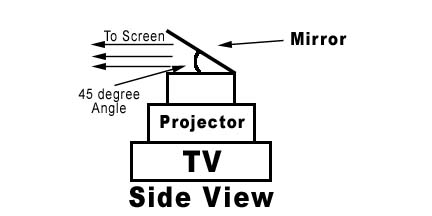

If your projection shows backward text, you can fix this without flipping the TV. Place the TV on its back (facing the ceiling) and attach a mirror at a 45-degree angle to the front of the projector box. This redirects the image and corrects the orientation.

Mirror alignment diagram

Improving Picture Quality

While a white sheet or light wall works, a Silver Finished Screen offers up to 6x the brightness. You can make your own by spraying several light coats of Metallic Silver enamel paint onto a smooth board or wall section.

Blurry Edges? Try sandwiching the Fresnel lens between two panels of flat glass. This ensures the lens stays perfectly flat, resulting in a much sharper projection.

Alternative Orientation: Yoke Flipping

Professional technicians can sometimes "flip" the image electronically by switching the wires on the Tube Yoke. This allows you to keep the TV in its normal upright position.

Tube yoke diagram
⚠️ SAFETY WARNING: Never attempt to open your TV yourself. CRTs store dangerous levels of electricity even when unplugged. Always have a trained professional perform any internal modifications.

Color Discoloration Fix

If you notice color issues after flipping your TV upside down, try this "degaussing" cycle:

  1. Turn the TV upside down and turn it on.
  2. Turn the TV OFF using the power button, but keep it plugged in.
  3. Wait at least 20 minutes for the internal circuits to reset.
  4. Turn the TV back on; the colors should now be corrected.
