Step 1.

First measure the height and width of your TV screen. Make sure to measure just the screen and not the box around it.


Step 2.

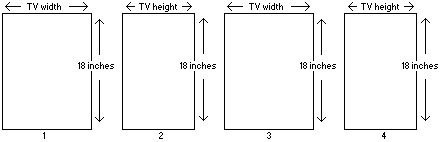

Then on the cardboard/wood etc. mark out your measurements for the screen height and width and set the depth to 18 inches. Cut 2 of each with your stanley knife. (Where I have written "TV height" and "TV width" I am referring to screen size.)


Step 3.

You will then have 4 individual pieces that will form the sides of the cube, top,bottom, left and right. When we put it together it will look like this. I have coloured the diagram only to help you visualize the box better.


Step 4

So here we are with 4 individual pieces that make up the outside of the box. Don't put them together just yet.
